Explanation:
ESİT AR stationary axle weighing scales enable both static and dynamic weighing of vehicles. In static weighing, the vehicle stops on the platform to let each axle to be weighed individually whereas in dynamic weighing the vehicle passes over the platform with a constant speed of approximately 7 km per hour. The weighing result can be viewed on a screen and total walue can be seen from the remote display unit.
This product cannot be used for legal trade or calculating the net cargo weight by weighing axle weights separately. It has been developed specifically for measuring axle weight. Capable of easily handling even the busiest weighing traffic, the system can be integrated with a computer to produce audio signals in case of overloading and is able to keep records of all weighing operations.
Properties:
- Slim profile
- Easy assembly to any required place
- Requires minimum space to operate
- Fully protected weighing platform
- Resistant to dust, mud, water and snow
- High weighing accuracy
- Microprocessor-controlled digital weighing terminal
- Capable of displaying the weight of each axle
Accessories:
- AR AR Stationary Axle Weighing Platform
Options:
Traffic lights
Remote display
Automatic vehicle recognition systemModels:
| Model | Nominal capacity (ton) | Minimum capacity (kg) | Sections e=d* (kg) | Platform size (m) | Platform | Loadcell number | Loadcell model | J-Box | Indicator |
| 030T-AR-0933 | 30 | 200 | 10 | 90x330 | Steel | 4 | SC | J-4 | PWI-T |
Specifications:
| **Loadcell | |
| Model | SC |
| Protection Class | IP68 |
| Mounting Kits | SC-EL |
| Fixed operating temperature interval | -10°C ... +40°C |
| Operating temperature interval | -40°C ... +80°C |
| ***Indicator | |
| Model | LCA-B-AR |
| Protection Class | IP54 |
| Feeding tension and strentgh | 12-24 VAC 6W |
| Operating temperature interval | -10°C ... +40°C |
| J-Box connection box | |
| Protection class | IP66 |
| Material | Alüminium |
| Enviroment | |
| Fixed operating temperature interval | -10°C ... +40°C |
| Operating temperature interval | -40°C ... +80°C |
| Feeding tension and strentgh | <300W (monitor & printer), 220VAC |
|
* Multi interval option available. ** You can find detailed information about Load cells and Mounting Kits, in Esit's Load cell and Mounting Kit catalogue. *** You can find detailed information about the Indicators used with Truck Scales, in Esit's Indicator and Control Devices catalogue. |
|
Blueprints:

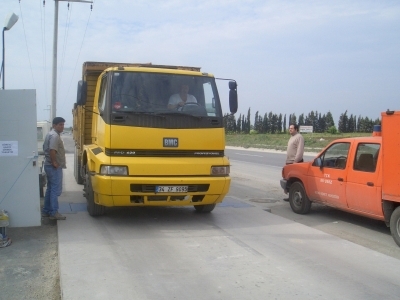

Images:
